Good Price High Quality 20,000 Tons of Straw Chaff Husk Wood Pellet Production Line Project
Date: 03/16/2021 08:50:28 From: wood-pellet-plant.com Clicks:
The project is a biomass pellet production line with an annual output of 20,000 tons. The main raw materials include straw, rice husk, and discarded boards. The chaff husk wood straw pellet production line project covers an area of 1,3052.3 square meters, including the construction of production workshops, raw material warehouses, finished product warehouses and supporting facilities. This biomass pellet production line is to produce biomass pellets with a diameter of 8-10mm and a length of 20-50mm. It produces 20,000 tons of material fuel per year and has a total investment of 750,000 US dollars.
Good Price High Quality 20,000 Tons of Straw Chaff Husk Wood Pellet Production Line Project
1. Investment and construction scale
Table 1-1 List of construction content and scale
| Project name |
Construction Content | scale |
| Main project |
Production workshop | Single-layer brick concrete, with a building area of 500m2, the crushing area is located on the west side of the production workshop; the crushing area is located on the east side of the production workshop; the granulating area is located on the north side of the production workshop |
| Storage and transportation engineering process |
Raw materials warehouse | Single-layer brick-concrete structure with a building area of 250m 2 , used for raw material storage, located on the east side of the factory |
| product warehouse | Single-story brick-concrete structure with a building area of 600m2, used for storage of finished products, located on the west side of the raw material warehouse |
2. Production scale
The biomass pellet fuel produced by the project has an annual production capacity of 20,000 tons.
Table 1-2 Main product plans
| serial number | name | specification | Packing specification | Annual output |
| 1 | Biomass pellets | Granular, diameter 8-10mm, length 20-50mm, high calorific value 3450-4200kcal/kg, water content 12-18%, density>1.12kg/m3, ash content<1.5%. | Mainly packaged in bags and 10kg | 20000t |
3. Raw materials
The main raw and auxiliary materials consumption of the project is shown in Table 1-3.
Table 1-3 Main raw and auxiliary materials types and consumption details
| Serial number | classification name | Packing | Storage and transportation | Annual consumption (t) | use | source |
| 1 | Straw | Solid state | Bulk Trucking | 6000 |
Production organisms
quality |
Outsourcing |
| 2 | chaff husk | Solid state | Bulk Trucking | 6000 |
Production organisms
quality |
Outsourcing |
| 3 |
Waste plate (main
To be wood) |
Solid state | Bulk Trucking | 6000 |
Production organisms
quality |
Outsourcing |
| 4 | water | / | / | 148.5m3 | drinking water | Groundwater well |
| 5 | Electricity | / | / | 0kwh | / | / |
Raw material requirements: moisture content ≤ 20, no impurities such as gravel, iron filings, silt, plastic, etc., and sulfur content of exhaust gas sheet ≤ 0.08
4. Main equipment
The main production equipment of the project is shown in Table 1-4.
Table 1-4 List of main production equipment of the project
| Serial number | Equipment name | unit | Quantity | source |
| 1 | Biomass pellet machine | station | 4 | Outsourcing |
| 2 | grinder | station | 3 | Outsourcing |
| 3 | Crusher | station | 1 | Outsourcing |
| 4 | Bag filter | station | 1 | Outsourcing |
| 5 | Belt conveyors | Article | 2 | Outsourcing |
Remarks: There is no boiler in this project.
5. Labor quota
The project has a labor force of 11 people, and none of the staff members do not have food and lodging in the factory. The annual working days are 300 days, and the production shift
The system is a 1-shift system with 8 hours per shift.
6. Process flow
1. Feeding material: Purchasing dry straw, chaff husk, etc. as required. Raw material requirements: low moisture content, no impurities such as gravel, iron filings, silt, plastic, etc., so dust will be generated during the unloading process.
2. Crushing and crushing: from the loader to the sealed conveyor line, it is transported by the belt to the crusher for crushing, and the crushed material with larger particle size is obtained. The iron removal device is installed at the outlet of the crushed material, and the crushed material (waste plate) The iron and other impurities are removed. The crushed material is conveyed from the loader to the belt to the crusher for crushing to obtain crushed materials with a particle size of <10mm. The crushed materials are sent to a closed warehouse through a closed conveyor belt for storage.
3. Granulation and molding: The granulator is the key equipment of the biomass fuel production line. After the crushed raw materials pass through the granulator in a closed environment, the finished biomass fuel pellets with a diameter of 8mm and a length of 20-40mm are formed.

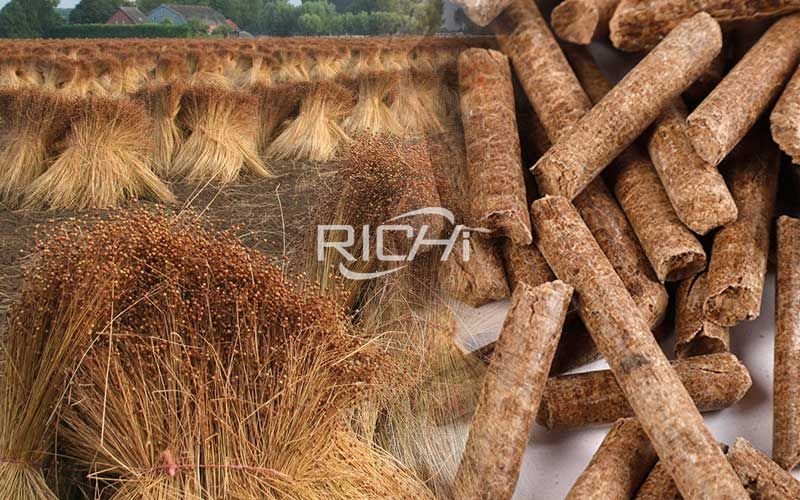

Straw pellet
4. Packing: the pressed products are packed and transported to the finished product warehouse.
7.Canada 2-3 t/h Full Automatic Biomass Wood Pellet Line
- Name: Full Automatic Biomass Wood Pellet Line
- Country: Canada
- Capacity: 2-3 t/h
- Date: Aug 10th, 2018
- Raw material: wood chips
- Water content: 50%
- Installation cycle: 60 Days
- Pellet Size: 6-12mm biomass wood pellet
